XIL-2 High Intensity, long life Illumination System

XIL-2

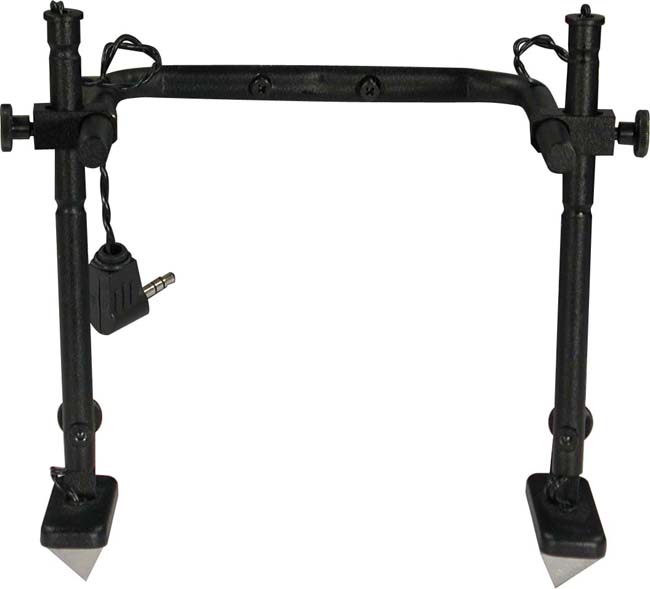

The system was designed for XK-Series tool holders to provide focused illumination at the place of rework. Properly illuminated PCB helps greatly to position a component, inspect paste deposition and improve quality of the solder joints after rework.

XIL-2 fits all X-KAR XK-Series Tool Holders manufactured after Jan 2004.

It does not occupy valuable bench space and can be installed in few minutes.

Features:

• Regulated distance from the board
• Full rotation, angle and forward-back adjustment of the illuminating heads.
• High intensity white soft light
• Long life (min 50 000 hours)

System includes:

• Arms with illumination - arms mount on XK-Series tool holders

Technical Specifications:

Input Voltage	110-120, 220-240V AC
Power consumption	Max. 2 VA
Weight	1.1 lbs. (0,5 kg)
System dimensions	15.7"x5.9"x7.9" (400 x 150 x 200 mm)
Packaged weight	1,5 lbs. (0,7 kg)

Optional equipments:

• Power Supply X-AC1 for 115V or X-AC12 for 220-240V. Needed when you have Pre-heater Based Rework System manufactured before October 2005).
• XCC-2L - Cord connecting XIL-2 with Pre-heater Based Rework System SMT-SerwiCE or Preheaters X-1000 (only for systems manufactured after October 2005).

Application:

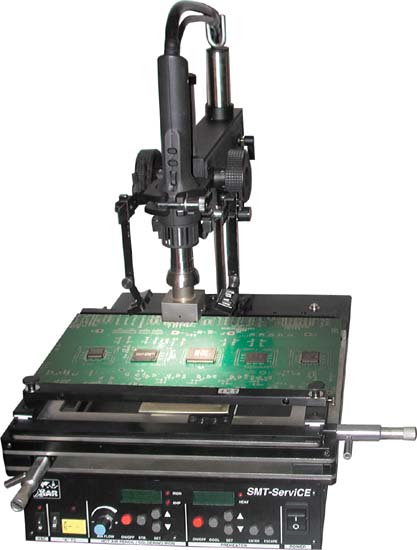

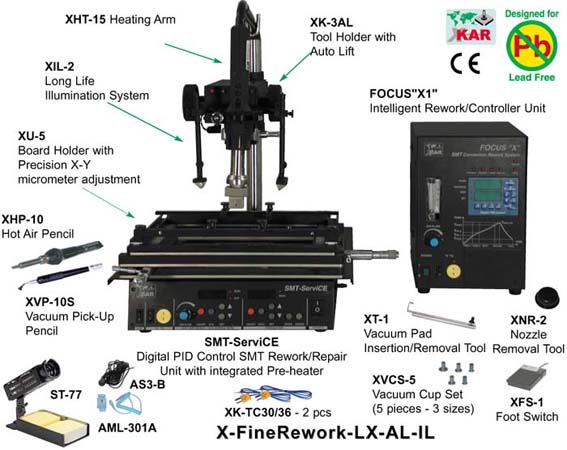

XIL-2 attached to XK-3AL

To enhance efficiency and speed during placement or replacement of the components using X-KAR Rework Equipment incorporating XK Holders.
