XK-AL
Series Hot Air Tool Precision-Adjustment
Tool Holders with Auto Lift
 |

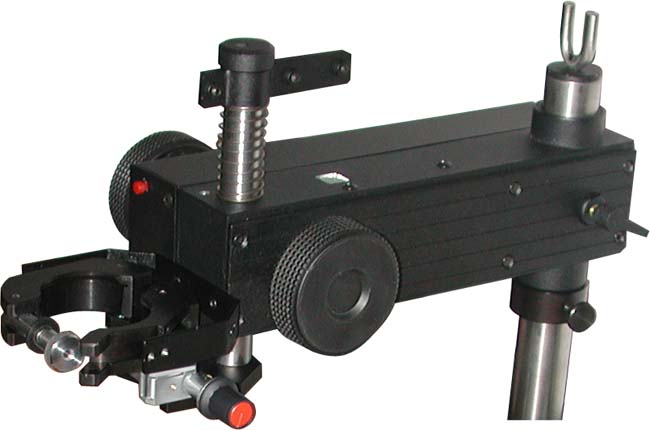

| XK-3AL Tool Holder with Auto Lift |
Auto-Lift is an option recommended for use with Focus "+" based rework packages. After the reflow-zone is finished it automatically raises the component before the start of a cooling cycle. This option makes the removal of components semi-automatic saving operators time. Installation of this option on XK-Series Holders takes few minutes and does not require any tools.
XK-1AL, XK-2AL, XK-3AL and XK-4AL Tool holders are XK-1, XK-2, XK-3 and XK-4 Tool Holders with an Auto Lift mechanism built-in. The Auto Lift tool holders are recommended for use with Focus "X" based rework packages. After the reflow-zone is finished it automatically raises the component before the start of a cooling cycle. The Auto Lift makes the removal of components semi-automatic, saving operator's time. Auto Lift can be activated either by a signal from Focus "X", or on demand either by a pushbutton switch or by a foot switch.
XK-AL Series System Includes:
- XLK-1 High Column Assembly (including XK-SR Support Ring, XK-W Washer and XK-FS Fastening Screw).
- XK-1AL, XK-2AL, XK-3AL or XK-4AL Arm
- XCC-1 Connection Cable (Connecting XK-AL with Focus "X")
Optional Accessories
(Necessary for use without Focus "X", as an independent
Auto Lift Unit)
- X-AC2 Power supply (for 110-120V)
- X-AC22 Power Supply (for 220-240V)
X-FineRework-LX-AL-IL shown with Auto Lift XK-3AL.
